Layouts

Entries can be shown in different layouts.

List and line layouts can show indentations for different levels in a structure.

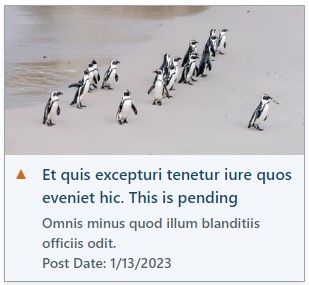

Cards

A vertical layout that puts emphasis on an image and allows unlimited multi line content.

Size and image aspect ratio

The visual impression of a card is highly depending on the type of image and the content/actions (e.g. typical length of title) in it.

So you may want to change the grid column width and the aspect ratio of the image for a better experience.

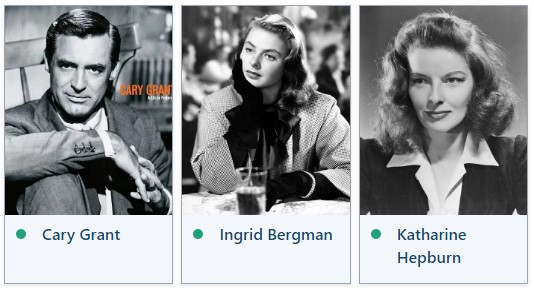

For example, for a person directory a smaller width and a portrait mode will be better:

->size('tiny')
->imageRatio(4/5)

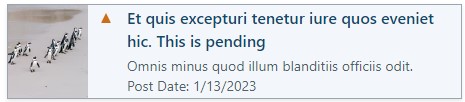

Cardlets

A more compact layout, less space for info

A size section config setting can be applied.

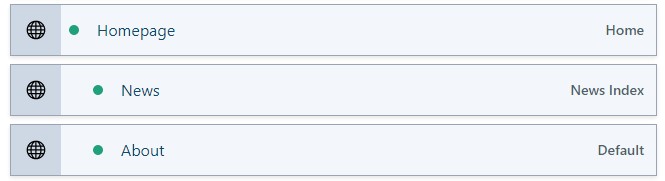

List

Horizontal layout, keep info on one line!

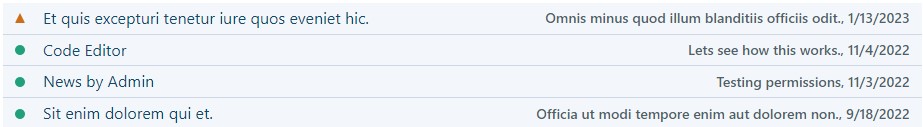

Line

Horizontal layout without image. The most compact layout.

Do not specify an imageField for this layout.

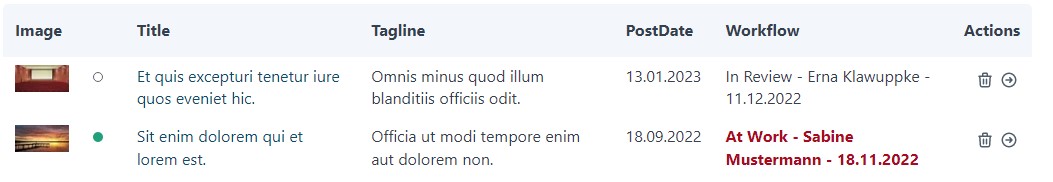

Table

A table with multiple columns.

$co->createTableSection('News', [
    $co->createTableColumn()
        ->label('Tagline')
        ->value('{tagline}'),
    $co->createTableColumn()
        ->label('PostDate')
        ->value('{postDate|date("short")}'),
    $co->createTableColumn()
        ->label('Workflow')
        ->template('_contentoverview/columns/workflow.twig')
])
    ->section('news')
    // all section config settings are available here

Available settings:

• TableSection
  • showImage (bool, whether to show the image column)
  • showStatus (bool, whether to show the status column)
  • showTitle (bool, whether to show the title column)
  • columns[] (array of TableColumns models)
    • label (string, column heading)
    • value (string, an object template) or:
    • template (string, a custom twig template, an entry variable will be available)
    • align (string, left (default)|right, alignment of the column content)

A TableSection::EVENT_DEFINE_TABLECOLUMNS event is available if you want to taylor the columns.
